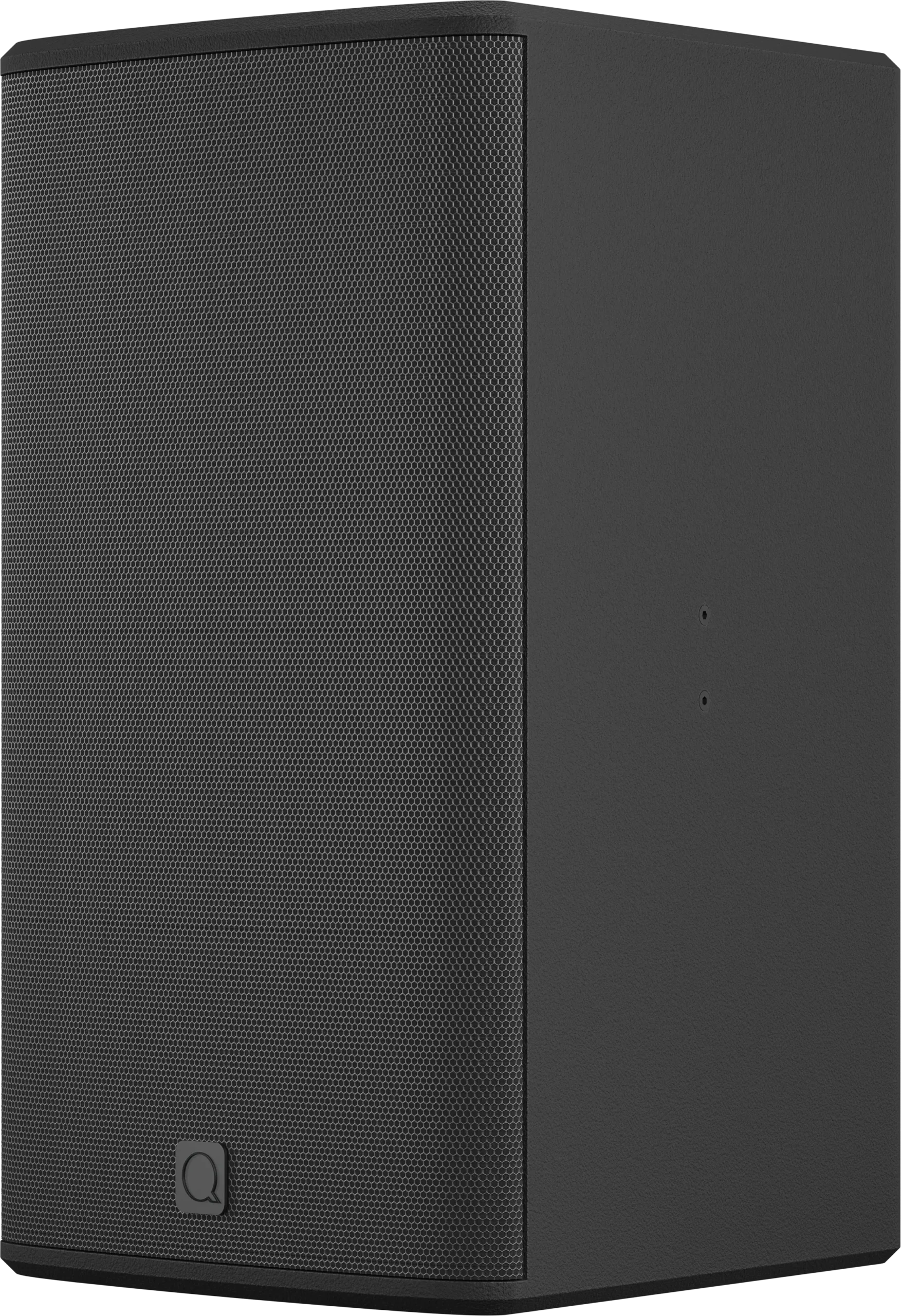

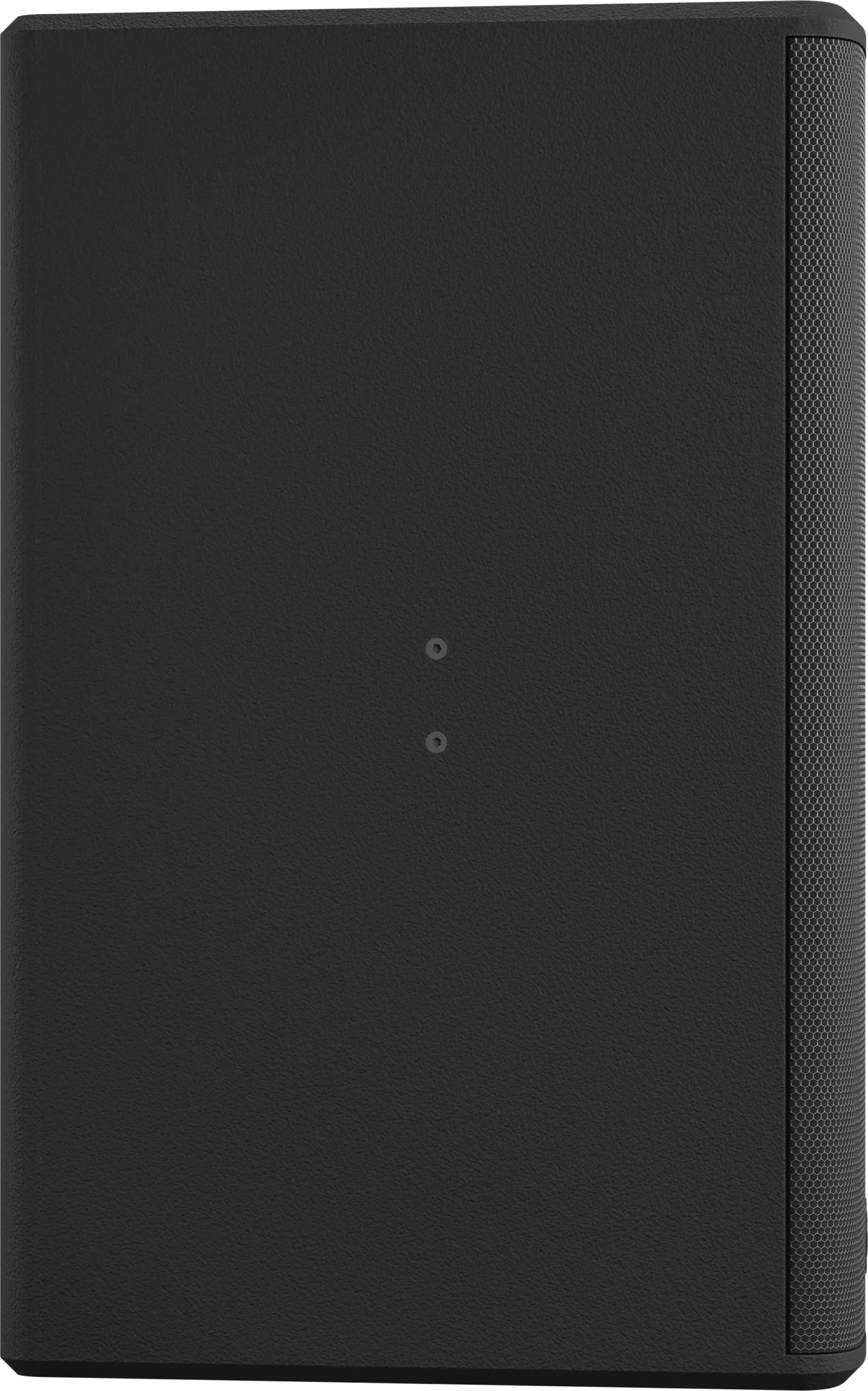

Qi12E
2-Way 12" Installation Weatherproof LoudspeakerThe Quest Qi12E extends the refined performance and flexible configuration of the Qi12 into environments requiring enhanced durability and weather resistance. Constructed from premium marine-grade plywood and coated inside and out with a rugged, waterproof polyurea finish, the Qi12E is engineered to withstand exposure to harsh environmental conditions while preserving its acoustic integrity. All external fasteners and the grille are stainless steel, ensuring maximum corrosion resistance. Designed for seamless integration with Quest QXD amplifiers, equipped with comprehensive digital control and DSP presets, the Qi12E delivers powerful, high-fidelity audio performance for outdoor hospitality, retail, commercial, and other demanding installation environments.
Key Specifications:
- Impedance: 8 Ω
- Transducers: 1.4″ HF & 12″ LF
- Dispersion: 80° x 50°
- Horn: Rotatable
- Power: 300W RMS
- Mounting: Horizontal & Vertical Brackets
- Weather Rating: IP55
SPECIFICATIONS
| COLOURS / MODELS |
|
||||
| FREQUENCY RESPONSE (-6 dB) | 60Hz to 18kHz | ||||
| SENSITIVITY - 1 W @ 1 m | 96.4dB | ||||
| MAXIMUM SPL @ 1 m | 127.2dB | ||||
| POWER HANDLING (RMS/PEAK) | 300W / 600W | ||||
| NOMINAL IMPEDANCE | 8Ω | ||||
| TRANSDUCERS | HF: 35mm (1.4") Compression Driver / LF: 305mm (12") Woofer | ||||
| DISPERSION (H° x V°) | 80° x 50° | ||||
| ROTATABLE HORN | Yes | ||||
| CONNECTIONS | 4-Pin Euroblock/Phoenix Connector - 7.62mm Pitch (In/Thru) | ||||
| RIGGING POINTS | Yes - See Specification Document | ||||
| IP RATING | IP55 | ||||
| DIMENSIONS (H x W x D) | 620 x 360 x 398mm (24.4" x 14.2" x 15.7") | ||||
| WEIGHT | 24.8kg (54.7lb) | ||||
| SHIPPING WEIGHT | 25.5kg (56.2lb) | ||||
| SHIPPING DIMENSIONS (H x W x D) | 755 x 490 x 450 mm (29.7” x 19.3” x 17.7”) | ||||
| CABINET MATERIAL & FINISH | Marine Plywood with Marine Grade UV Resistant Polyurea Coating | ||||
| GRILLE MATERIAL & FINISH | Stainless Steel mesh with Polyester Fiber Fabric | ||||
| RECOMMENDED POWER AMPLIFIER | Quest QX or QXD Amplifiers | ||||
| ACCESSORIES (INCLUDED) | Euroblock/Phoenix Connector, Cover Plate | ||||
| ACCESSORIES (AVAILABLE SEPARATELY) | Horizontal Bracket (HBRQi12) Vertical Bracket (VBRQi12) |
INSTALLATION ACCESSORIES
VBRQi
Vertical U-mount bracket for Qi Series

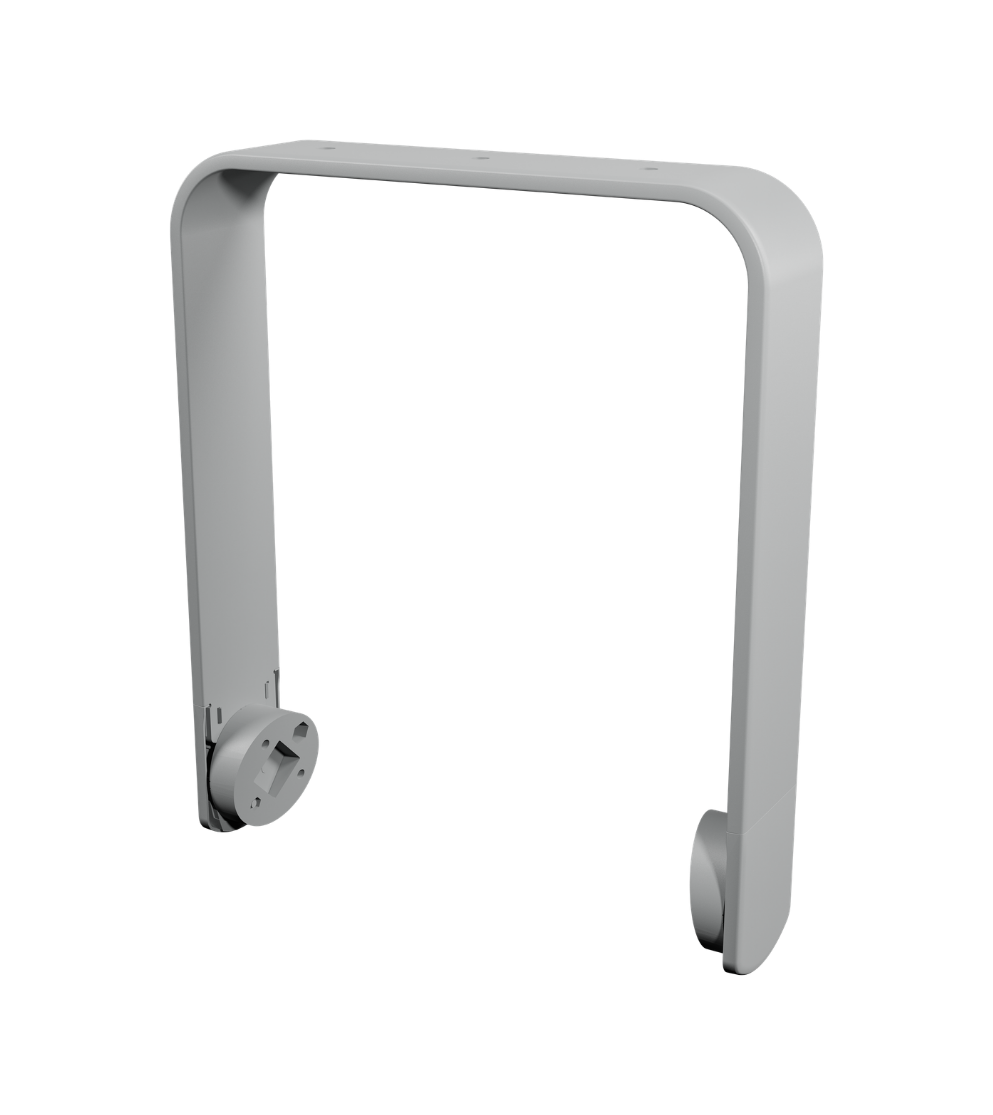

VBRQiW
Vertical U-mount bracket for Qi Series
HBRQi
Horizontal U-mount bracket for Qi Series
HBRQiW
Horizontal U-mount bracket for Qi Series
